Senville vs MrCool DIY: Is the Price Difference Worth It? (2026 Comparison)
1 Operation: Climate Control – The Strategic Necessity
1.1 The Battlefield: High Bills and Thermal Discomfort
Listen up, homeowner. The current state of your domestic infrastructure is unacceptable. You are bleeding capital every month on utility bills that finance inefficient, antiquated systems, while your tactical living zones—the bedroom, the sunroom, the garage workshop—remain uncomfortable. You are facing thermal loads that your current equipment cannot engage, and you are likely confused by a barrage of conflicting contractor quotes and technical jargon designed to separate you from your budget.
This stops now.
The objective of this dossier is absolute clarity. We are engaging in a comprehensive, engineering-grade analysis of the two primary solutions for direct-to-consumer ductless HVAC: Senville and MrCool DIY. This is not a discussion about aesthetics; this is an analysis of thermal dynamics, economic lifecycles, and installation logistics. We will dismantle marketing fluff, expose warranty loopholes, and mathematically determine which system offers the superior tactical advantage for your specific deployment.
1.2 Mission Objectives
We are here to answer one question: Does the “do-it-yourself” convenience of MrCool justify its premium price tag, or does the budget-friendly Senville offer superior value for those willing to engage in specialized tradecraft? To execute this mission, we will analyze:
Engineering Authority: The physics of thermal load, SEER2 efficiency, and the critical R-454B refrigerant transition.
Financial Reconnaissance: Total installed cost, including hidden tooling expenses and the Inflation Reduction Act (IRA) tax credits for 2025.
Installation Doctrine: The reality of vacuum protocols versus pre-charged Quick Connect systems.
Operational Reliability: Warranty traps, common failure modes, and long-term viability.
General’s Warning
Do not proceed without a Manual J load calculation. “Rule of thumb” sizing (e.g., “500 sq ft per ton”) is civilian guesswork that leads to short-cycling and humidity disasters. Use the MiniSplitSizer.com Calculator immediately to determine your exact thermal load.
2 Intelligence Dossier: The Combatants
MrCool has disrupted the HVAC hierarchy by weaponizing accessibility. Their flagship product is engineered to bypass EPA Section 608 requirements.
- Pre-Charged Line Sets: Factory-charged and sealed. No vacuum pumps needed.
- The “Pro Cable”: Armored, pre-wired interconnect cable protecting against rodents.
- Warranty Structure: Uniquely covers DIY installation.
Senville operates as a traditional equipment supplier. They utilize Midea manufacturing, offering high-spec hardware at wholesale prices, but adhering to traditional installation doctrines.
- Leto Series (Budget): Cost-effective for cooling-dominant climates.
- Aura Series (Premium): “Arctic” heat pump performance down to -22°F. Rivals Mitsubishi.
- Standard Infrastructure: Copper lines must be flared, vacuumed, and torqued.
3 Engineering Deep Dive: Thermodynamics
We do not buy HVAC systems based on color. We buy them based on their ability to move BTUs against a thermal gradient.
3.1 Efficiency Metrics: The SEER2 Standard
- Senville Aura: The Efficiency Sniper. SEER2 up to 27.4. Designed for maximum thermal exchange efficiency with advanced inverter micro-adjustments.
- MrCool DIY 5th Gen: The Heavy Hitter. SEER2 up to 23.5. Marginal practical difference in annual electricity savings compared to Aura.
- Senville Leto: The Infantry. SEER2 around 19-21.5. Significant upgrade from window units but lacks ultra-efficiency.
3.2 Cold Weather Ops: The “Hyper Heat” Factor
For operatives in northern latitudes (Zone 5+), heating capacity at low temperatures is the primary metric.
- Senville Aura (Arctic) Heats down to -22°F. Vapor injection keeps mass flow high.
- MrCool DIY 5th Gen Heats down to -13°F to -22°F. Viable primary heat source.
- Senville Leto Rated to 5°F. Capacity drops precipitously. Shoulder-season only.
3.3 The R-454B Transition: Future-Proofing
As of 2025, the EPA mandates a transition to R-454B (Opteon XL41). Both brands are transitioning.
- Flammability: R-454B is A2L (Mildly Flammable). Requires specific sensors.
- Tooling: DIY Senville installers must ensure vacuum pumps are rated for A2L to prevent ignition.

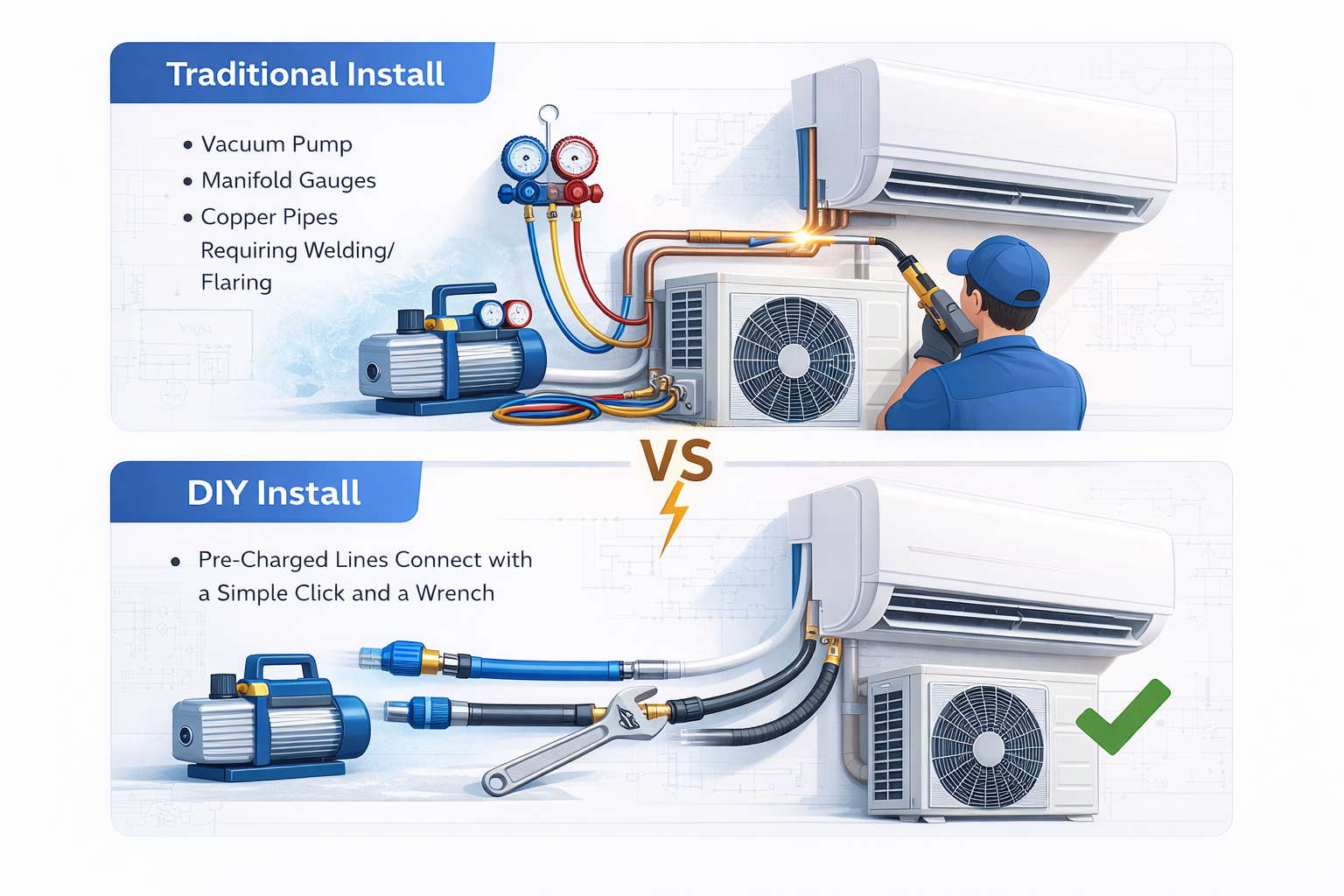

4 Tactical Analysis: Installation Methodologies
This is the decisive front. The installation method dictates your risk profile, your tool budget, and your warranty status.
4.1 The Vacuum Protocol (Senville Strategy)
To install a Senville, you are performing the role of a licensed technician. The line set comes as empty copper coils.
The Procedure:
- Fabrication: Cut, deburr, and flare copper lines.
- Connection: Torque flare nuts to precise specs.
- Pressure Test: Inject dry nitrogen to 300-500 PSI.
- Evacuation: Use 2-stage pump to pull below 500 Microns.
- Decay Test: Ensure vacuum holds below 1000 microns for 10 mins.
- Release: Open king valves.
Risk Factor: HIGH. A bad flare or poor vacuum is a delayed-action landmine (Acid formation).
4.2 The Quick Connect Doctrine (MrCool Strategy)
MrCool bypasses the physics of the field install. Lines come sealed and pre-charged.
The Procedure:
- Route: Run line set from indoor to outdoor.
- Connect: Thread couplers, tighten until bottomed out.
- Release: Open outdoor unit valves.
Risk Factor: LOW. Primary risk is cross-threading.
5 Financial Reconnaissance: The True Cost of War
Do not be deceived by sticker prices. We must calculate the Total Installed Cost (TIC).

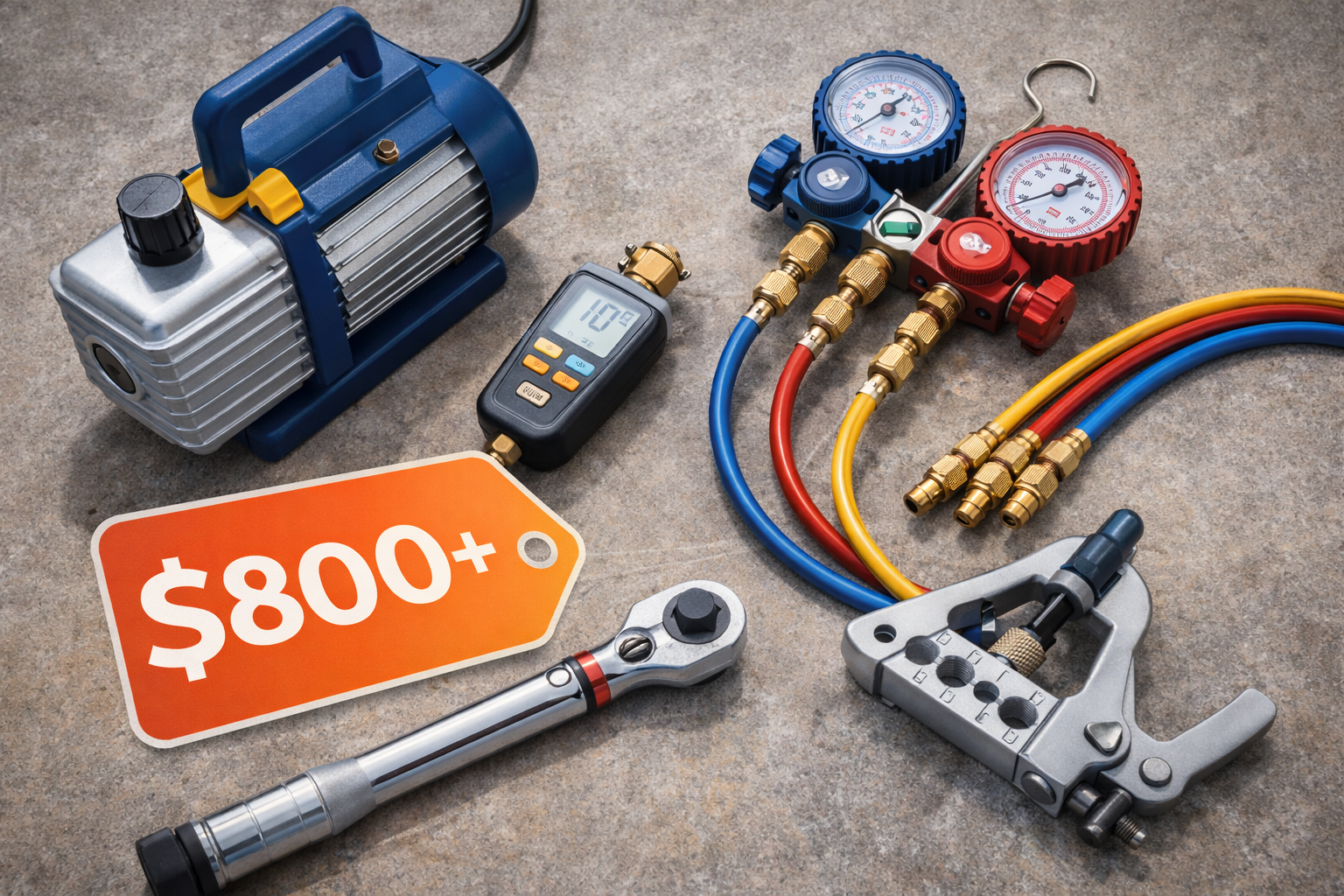

5.2 The Civilian Tool Tax
To install a Senville correctly, you need a specific loadout. Buying “garbage tier” tools puts your system at risk.
- Vacuum Pump ($300+)
- Manifold Gauges ($100)
- Micron Gauge ($200+)
- Torque Wrench ($75)
- Total Tool Investment: $400 – $800
| Cost Component | Senville Leto (Budget) | Senville Aura (Pro) | MrCool DIY 5th Gen |
|---|---|---|---|
| Unit Price (12k) | $850 | $1,500 | $1,800 |
| Tools (Pump, Micron Gauge) | $400+ | $400+ | $0 (Not Required) |
| Pro Sign-off (Warranty) | $500 | $500 | $0 |
| TOTAL ESTIMATED COST | $1,750+ | $2,400+ | $1,800+ |
Inflation Reduction Act (Section 25C)
MrCool DIY 5th Gen and Senville Aura generally qualify for the 30% Tax Credit (up to $2,000). The Senville Leto often does NOT qualify due to lower efficiency. This credit can equalize the price gap significantly.
6 Field Reports: Reliability and Failure Modes
6.1 Senville Failure Analysis
- Flare Leaks: Factory flares are imperfections. DIYers use them as-is, leading to slow leaks.
- Comm Errors (E1): Caused by bad splices or using solid-core wire instead of stranded 14/4.
6.2 MrCool Failure Analysis
- Coupler Leaks: Failure to torque quick connects until they bottom out. Leaks mean buying a whole new line set.
- Kinked Lines: Soft copper kinks easily if bent aggressively.
7. Sizing Strategy: Precision Targeting
We do not guess. We calculate. A “Rule of Thumb” like “12,000 BTU for 500 sq ft” is a civilian tactic that ignores ceiling height and insulation.
Action Item:
Launch MiniSplitSizer Calculator8. Case Studies: Real World Deployments
8.1 Project: “The Smith Family Sunroom” (Ohio)
Challenge: 300 sq ft glass room. High heat loss in winter.
Solution: Senville Aura 12k BTU.
Reasoning: “Arctic” performance (-22°F) was critical. Hired a tech for $400 for startup to keep warranty.
8.2 Project: “The Garage Gym” (Texas)
Challenge: 400 sq ft uninsulated garage. Budget constrained.
Solution: Senville Leto 18k BTU.
Reasoning: Efficiency secondary to raw power. “Budget DIY” install.
8.3 Project: “The Second Floor Master” (Florida)
Challenge: Supplemental cooling. Zero contractor interaction desired.
Solution: MrCool DIY 12k BTU.
Reasoning: Speed and ease were paramount. Installed in one Saturday morning.
9. Final Recommendations
Scenario A: “Handy Andy”
Owns multimeter, willing to buy vacuum pump.
Recommendation: Senville Aura
Premium efficiency (25+ SEER2) and elite cold climate performance. Warning: You are your own warranty station.
Scenario B: “Checkbook Warrior”
Wants valid warranty, speed, no flaring.
Recommendation: MrCool DIY
Massive time savings. “Pro Cable” solves wiring. The extra cost is the price of risk mitigation.
Scenario C: “Rental/Flip”
Lowest capital expenditure.
Recommendation: Senville Leto
Disposable infrastructure. Cools effectively. Tactical choice for assets you plan to sell.
The General’s Decree 🎖️
- If you choose MrCool, manage your excess line set horizontally. Do not create oil traps.
- If you choose Senville, use a micron gauge. If you evacuate by “timing it,” you are a gambler.
Dismissed.
Comparing other brands? Check out our MrCool vs Pioneer guide too.
Addendum: Technical Data Comparison 📊
| Feature | Senville Leto | Senville Aura | MrCool DIY 5th Gen |
|---|---|---|---|
| SEER2 Rating | 19 – 21.5 | 22.5 – 27.4 | 22 – 23.5 |
| Heating Min Temp | 5°F | -22°F | -13°F to -22°F |
| Line Set | Standard (Empty) | Standard (Empty) | Pre-Charged |
| 10-Year TCO | $12,500 | $10,625 | $11,150 |
Data compiled from manufacture specifications and authorized dealer listings.
12. Operational Protocols: Maintenance
Mini-splits process massive volumes of air. Mesh filters must be cleaned every 2-4 weeks.
- MrCool Care Program: “Care Kit” is mandatory for lifetime warranty.
- Winter Defense: Mount unit 12-18 inches above snow line.
