3 Zone Mini Split Systems:
The Ultimate Whole-Home Solution
One outdoor unit. Three indoor climates. We break down the engineering behind “Diversity Factors,” why MrCool is the only true DIY option, and how to avoid the “Short Cycling” trap.

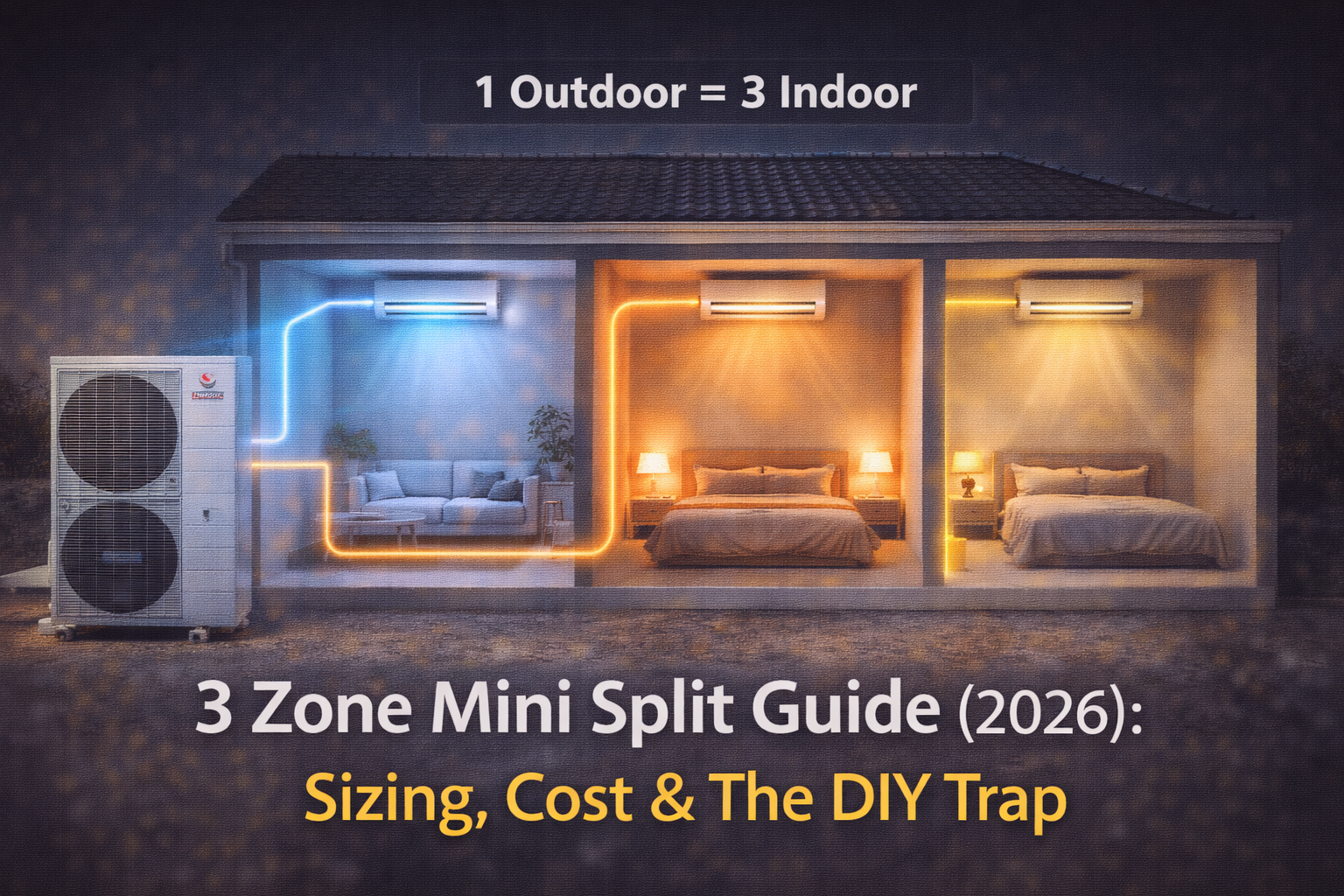

1 Condenser : 3 Heads
The General’s Strategy
A 3-Zone system is perfect for a Living Room + 2 Bedrooms setup. However, installing lines to three different rooms is complex. If you are DIYing, MrCool DIY Multi-Zone is your ONLY realistic option without specialized tools. If you want maximum efficiency (SEER 25+) and hidden lines, hire a pro to install a Mitsubishi Hyper Heat.
The “Capacity Math” Trap
Most homeowners make a simple math error: “I need three 9,000 BTU heads, so I need a 27,000 BTU outdoor unit.”
WRONG. This leads to oversizing and humidity issues.
The Secret: Diversity Factor
You rarely run all 3 rooms at maximum turbo speed simultaneously. Maybe the living room is busy during the day, and bedrooms at night.
A 24,000 BTU outdoor unit can easily handle 3x 9k heads (27k total). The computer modulates the refrigerant to where it’s needed. This saves you money on the unit and electricity.
The Danger: Oversizing
If you buy a massive 36k unit for three small bedrooms, the compressor will “Short Cycle” (turn on/off rapidly).
- Result 1: High Humidity (Mold risk)
- Result 2: Higher Electric Bills
- Result 3: Compressor death in 5 years
Top 3-Zone Systems for 2026
The DIY King
MrCool DIY Gen 4

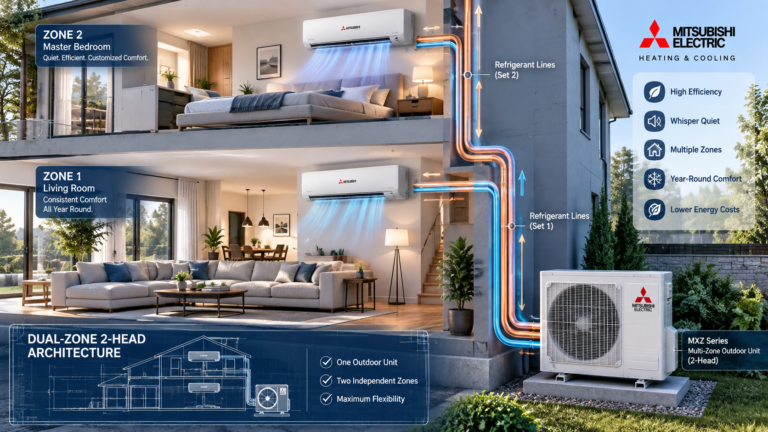

The Efficiency Beast
Mitsubishi MXZ
The Budget Pro
Pioneer / Senville
The “Spider Web” Problem
Installing a single zone is easy: straight through the wall. Installing a 3-zone system is a logistical puzzle. You have to run lines from the outdoor unit to three different corners of your house.
1. Line Set Length Limits
Every system has a “Maximum Total Pipe Length” (usually ~100-150ft). You must measure the distance to each room. If you exceed this, the compressor will fail.
Read: 7 Fatal Install Mistakes2. Hiding the “Ugly”
You will have bundles of white pipes running along your siding. You MUST plan for line set covers to protect them from UV rays and make them look professional.
Guide: How to Install Line CoversElectrical Note:
A 3-zone unit typically requires a 30-40 Amp double-pole breaker. Ensure your panel has space. Read our Electrical Requirements Guide.
Case Study: The “Ranch House” Retrofit
Replacing Baseboard Heat
Problem: A 1,200 sq ft ranch home in New York was spending $600/month on electric baseboard heating. No ductwork existed.
Solution: We installed a 24,000 BTU Senville Aura (3-Zone).
• Zone A (12k): Living Room/Kitchen
• Zone B (9k): Master Bedroom
• Zone C (9k): Guest Room
Result: Bill dropped to $180/month.
ROI: System paid for itself in 1.5 winters.
$2,500/yr
Annual Savings
3-Zone FAQ
Can I run one room on Heat and another on Cool?
No. This is the #1 limitation. Since there is only one outdoor compressor, the entire system must be in either Heat Mode or Cool Mode. If you try to mix modes, the system will go into “Conflict Mode” and stop working.
Is it better to get 3 separate single zones?
Sometimes. Single zones are more efficient (higher SEER) and provide redundancy (if one breaks, the others still work). However, you will need 3 electrical breakers and 3 outdoor units cluttering your yard. A 3-Zone system is cleaner but slightly less efficient.
How much does a 3-zone installation cost?
For a professional install, expect to pay $8,000 – $12,000. For a DIY MrCool install, the equipment costs around $4,200. See our detailed Installation Cost Guide.
Don’t Guess the Zones.
Calculations for multi-zone systems are tricky. Use our free tool to size each room individually.
